| Place of Origin: | China |
| Certification: | CE, CCC, FCC, ROSH, ISO9001 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 400-1999 per sqm |
| Packaging Details: | Flight case or wooden case |
| Delivery Time: | within 15 to 20 working days after receiving deposit |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1300 square meters per month |
| Pixel Pitch: | PH2mm | Encapsulation: | SMD2121 |
|---|---|---|---|
| Refresh Rate: | 1920Hz-3840Hz | Cabinet: | Die-casting Aluminum Alloy |
| Cabinet Size: | 512x512mm | View Angle: | 140°(Horizontal )/140°(Vertical ) |
| LED Lifespan: | 100,000 Hours | Working Voltage: | AC 220V/110V S±15% 50-60 HZ |
| Viewing Distance: | 2-60 Meters | ||
| High Light: | commercial led display,rgb led screen |
||

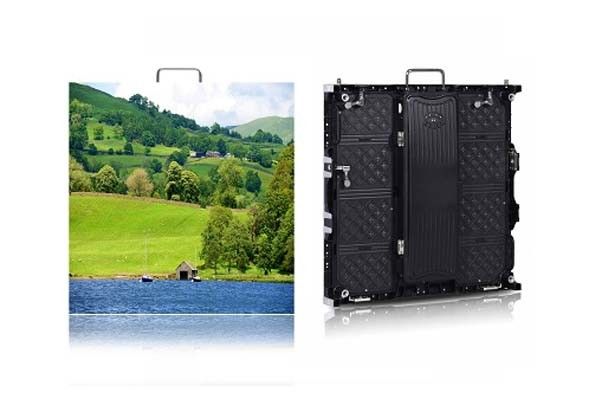

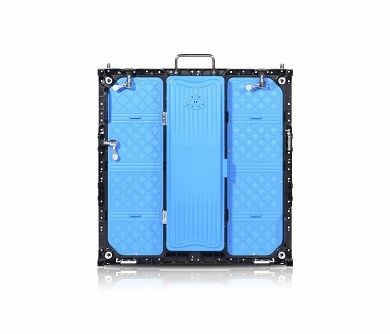

Stage 3840Hz -1920Hz LED Display HD Led Screen Module 3000-12000K
Specifications:
| Pixel Pitch | 2mm |
| Pixel Package | SMD1010 |
| LED Configuration | 1R1G1B |
| Pixel Density | 250000 Pixels/㎡ |
| Module Size | 128mm x 128mm |
| Module Resolution | 64 x 64 dots |
| Suggested Cabinet Size | 512mm x 512mm x 70mm |
| Cabinet Resolution | 256 x 256 dots |
| Cabinet Material | Die-casting Aluminum Alloy |
| Cabinet Weight | 3.5 kg/panel |
| Brightness | 600-1200 nits |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-140°/ V-140° |
| Driving Mode | 1/32 |
| Refresh Rate | 1920-3840Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 4096-16384 |
| Number of Color | 1 billion |
| Input Maximum Power | 2100 W/㎡ |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
| IP Rating | IP43 |
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible, and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After the Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips, etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with the client to find solutions.
2) Our company can train users based on the manual. The training includes system use, system maintenance, and equipment protection.
