| Place of Origin: | China |
| Certification: | CE, CCC, FCC, ROSH, ISO9001 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 400-1999 per sqm |
| Packaging Details: | Flight case or wooden case |
| Delivery Time: | within 15 to 20 working days after receiving deposit |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1300 square meters per month |
| Pixel Pitch: | Small Pixel Pitch PH1.923mm | Encapsulation: | SMD1010 |
|---|---|---|---|
| Color: | Full Color | Cabinet: | Die-casting Aluminum Alloy |
| Cabinet Size: | 400x300mm | View Angle: | 140°(Horizontal )/140°(Vertical ) |
| LED Lifespan: | 100,000 Hours | Working Voltage: | AC 220V/110V S±15% 50-60 HZ |
| Viewing Distance: | 1-60 Meters | ||
| Highlight: | led display module,advertising led display screen |
||
Waterproof 1R1G1B LED Screen PH1.923mm 400x300mm Cabinet Size
Competitive advantages
1. Curve LED screen realise larger viewing angle to reach more audience;
2. 1RGB P20 Outdoor LED billboard is being widely choose for large size outdoor LED billboards projects;
3. Curve LED cabinet of IP65,waterproof and dustproof;
4. High brightness up to 8000cd,and special requirement LED screen projects can reach 10,000nits;
5, The LED billboards present clear vivid image and video even under direct sunshine;
6. Waterproof and dust proof for outdoor environment use;
Specifications:
| Pixel Pitch | 1.923mm |
| Pixel Package | SMD1010 |
| LED Configuration | 1R1G1B |
| Pixel Density | 270422 Pixels/㎡ |
| Module Size | 200mm x 150mm |
| Module Resolution | 104 x 78 dots |

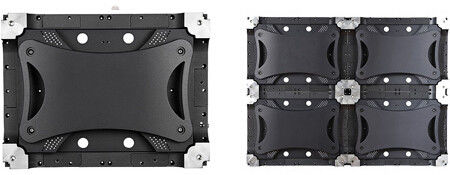

| Suggested Cabinet Size | 400mm x 300mm x 53mm |
| Cabinet Resolution | 208 x 156 dots |
| Cabinet Material | Die-casting Aluminum Alloy |
| Cabinet Weight | 5.1 kg/panel |
| Brightness | 800-1500 nits |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-140°/ V-140° |
| Driving Mode | 1/26 |
| Refresh Rate | 1920-3840Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 4096-16384 |
| Number of Color | 1 billion |
| Input Maximum Power | 1600 W/㎡ |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
| IP Rating | IP43 |
Features:
1. seamless assembling, less than 1mm.
2. High-definition visual effect.
3. High thermal conductivity Alloy cabinet, better heat dissipation
4. Fan-free design, energy saving, more stable,
5. 140〫 degree wilde view angle
6. Power, signal indicators in the power box.
7. Approved by RoHS certification, Lead-free, enviromental design
8. Ergonomic handle design, convenient handling
9. High performance and adjustable side lock.
10. International standards air plug on Power connectors, easy, fast and safe.
11. Receiving card to card with LAN cable, simple, less failure rate
