Name: SMD P3 32x32 Led Matrix Display / Aluminum 160x320mm Led Module Screen
Brand: Beijing Silk Road Enterprise Management Services Co.,LTD
Price: Negotiable USD
Availability: InStock

Home Products 32x32 LED Matrix Display

SMD P3 32x32 Led Matrix Display / Aluminum 160x320mm Led Module Screen

Product Details:

Place of Origin:	China
Certification:	CE, CCC, FCC, ROSH, ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD 400-1999 per sqm
Packaging Details:	Flight case or wooden case
Delivery Time:	within 15 to 20 working days after receiving deposit
Payment Terms:	T/T, Western Union
Supply Ability:	1300 square meters per month

Contact Now

Detailed Product Description

Brightness:	1500nits	Pixel Pitch:	3.91mm
Pixel Package:	Nation Star	Module Size:	250x250mm
Pixel Density:	43264pixels/m²	Material:	Aluminum
IP Garde:	IP40
Highlight:	led screen manufacturer , led advertising screen

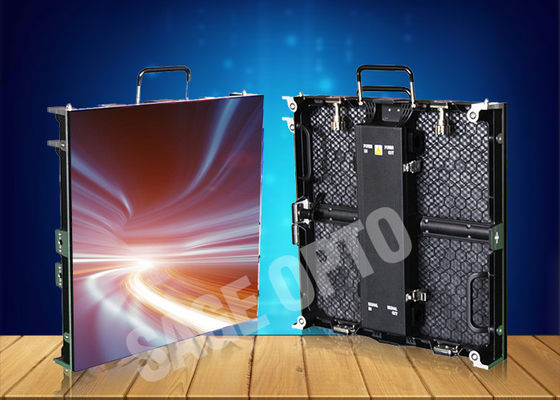

SMD P3 32x32 Led Matrix Display / Aluminum 160x320mm Led Module Screen

Features:

1. High precision with Die-casting aluminum structure and CNC processing.

2. Ultra thin and light weight, small panel size, easy to install and dismantle.

3. Excellent natural cooling effect with aluminum material structure.

4. High refresh rate and definition, support Live broadcasting without water ripple.

5. Good bearing capacity, support 15 panels straightly line in vertically for onetime.

6. Pure Black LEDs and Inferior smooth mask help it to achieve an high contrast ratio.

7. High stability quality performance support long time working without flash, mosaic.

8. Do not need to open back cover, crew to be taken out easily.

9. Multi purpose and high performance-price.

Specifications:

Product Series	R3.91
Pixel Pitch	3.91mm
Pixel Package	SMD2121
LED Configuration	1R1G1B
Pixel Density	65,536 Pixels/㎡
Module Size	250mm x 250mm
Module Resolution	32*32ixel
Suggested Cabinet Size	500mm x 500mm x 80mm
Cabinet Resolution	128 x 128 dots
Cabinet Material	Aluminum
Cabinet Weight	＜9kg/panel
Brightness	2000 nits
Color Temperature	3000-12000K
Viewing Angle	H-140°/ V-140°
Driving Mode	1/10
Refresh Rate	960-2880Hz
Frame Frenquency	60Hz
Grey Level	4096-16384
Number of Color	1 billion
Input Voltage	AC220±10%, AC110 ±10%
Input Frequency	50-60Hz
IP Rating	IP43

Applications:

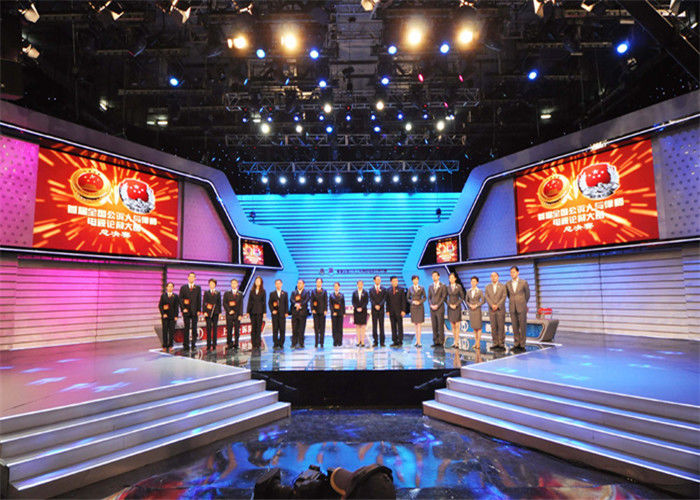

Live shows, rental events, TV studios, exhibitions, fashion show, music concert, conference, etc.

SMD P3 32x32 Led Matrix Display / Aluminum 160x320mm Led Module Screen

Tag:

led screen manufacturer,

led video wall panels,

led advertising screen
