Mobile 1920Hz LED Display SMD 3535 P6.25 Mean Well Power Supply
Description:
Integrally mounted handle, easier disassembly.
LED module connects to frame through magnet adsorption.
Frame supports different model(pixel pitch)of modules, increasing the investment return by 30%.
4 fast locks with adjustment function for the seamless between panels.
Front & rear maintenance while display is running-no tools needed.
Specifications:
|
LED Lamp Specification
|
|
Color
|
Package
|
Intensity
|
Viewing angle
|
Wavelength
|
Testing condition
|
|
Red
|
SMD3535
|
800-1100mcd
|
120°
|
620-625nm
|
25℃,20mA
|
|
Green
|
SMD3535
|
1600-2250mcd
|
120°
|
515-530nm
|
25℃,20mA
|
|
Blue
|
SMD3535
|
350-500mcd
|
120°
|
465-475nm
|
25℃,20mA
|
|
Module Parameter
|
|
Pixel Pitch
|
6.25mm
|
|
Pixel Configuration
|
SMD3535
|
|
Density
|
27,778 pixels/sqm
|
|
Module Resolution
|
32pixel(L) * 32pixel(H)
|
|
Driving Mode
|
Constant current, 1/4 duty
|
|
Module Mask
|
Pure black mask---high contrast screen
|
|
LED Cabinet
|
|
Cabinet Material
|
Die Cast Aluminum
|
|
Cabinet Weight
|
≈12KG
|
|
Electricity Parameter
|
|
Optical Ratings
|
|
Brightness
|
≥6,500 cd/sqm
|
|
Viewing Angle
|
120°(Horizontal); 120°(Vertical)
|
|
Best Viewing Distance
|
≥6m
|
|
Display Color
|
4.4 trillion colors
|
|
Brightness Adjustment
|
100 grades by software or automatically by sensor
|
|
Operation Power
|
AC100-240V 50-60Hz Switchable
|
|
Max. Power Consumption
|
850 W/sqm
|
|
Avg. Power Consumption
|
280W/qsm
|
|
Control System
|
|
Frame Frequency
|
≥60Hz
|
|
Refresh Frequency
|
≥1,920Hz
|
|
Input Signal
|
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
|
|
Control Distance
|
100m(Ethernet cable);
20KM(optical fiber cable)
|
|
Support VGA Mode
|
800*600, 1024*768, 1280*1024, 1600*1200
|
|
Color Temperature
|
5000—9300 adjustable
|
|
Brightness Correction
|
Pixel by pixel, module by module, cabinet by cabinet
|
|
Reliability
|
|
Working Temperature
|
-20~+60 ºC
|
|
Storage Temperature
|
-30~+70 ºC
|
|
Working Humidity
|
10%~90% RH
|
|
Lifetime
|
100,000 hours
|
|
MTBF
|
5000 hours
|
|
Continuous Operating Time
|
≥72 hours
|
|
Protection Grade
|
IP65(front), IP54(rear)
|
Applications:

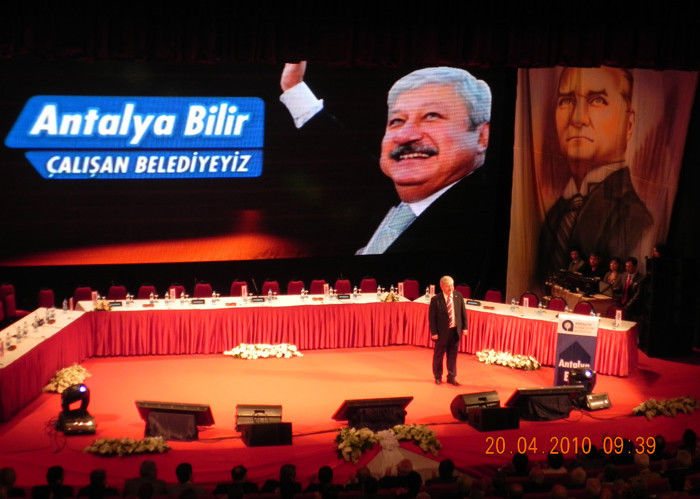

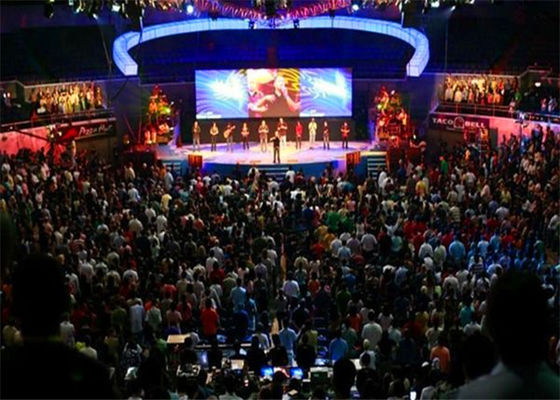

Live shows, rental events, TV studios, exhibitions,Facades of shopping malls, department stores, banks and car dealerships.
1. Two-year quality warranty with lifelong maintenance.
2. Free guarantee repair (including labor and material); free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.
3. Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.
4. Spare parts: necessary spare parts are provided together with products to customers.
5. Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
6. Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
