| Place of Origin: | China |
| Certification: | CE, CCC, FCC, ROSH, ISO9001 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 400-1999 per sqm |
| Packaging Details: | Flight case or wooden case |
| Delivery Time: | within 15 to 20 working days after receiving deposit |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1300 square meters per month |
| Material: | Aluminum | Pixel Pitch: | 4.81mm |
|---|---|---|---|
| Pixel Package: | SMD3528 | Brightness: | 1200nits |
| Power Supply: | Mean Well | IP Grade: | IP43 |
| High Light: | led video wall panels,led advertising screen |
||
Aluminum 32x32 Led Matrix Display Epistar Chip High Reliability
Features
1. 320*320mm LED module size, the cabinet can be 640*64mm/640*960mm/960*960mm....
2. Adopt SMD technologe LED display, with wide viewing angle, the led screen can be seen from any angle,
if for advertising, more people can see the LED screen clearly.
3. Nationstar SMD3535 LED lamp, high brightness can reach 7000nit,high reliability.
4. Lower power consumption, power-saving, and longer lifespan.
5. Using uvioressistant &anti-UV3 mask to protect the LED lamp.
6. Wateproof, moistureproof, corrososinproof. The LED display surface will be treated by epoxy resin sealing;
7. High gray scale and refresh rate, using blanking technology, saving energy, low EMI, preventing leakage, supporting system multiplex redundancy backup and chroma cali bration.
Specifications:
| Product Series | R4.81 |
| Pixel Pitch | 4.81mm |
| Pixel Package | SMD3528 |
| LED Configuration | 1R1G1B |
| Pixel Density | 43222Pixels/㎡ |
| Module Size | 250mm x 250mm |
| Suggested Cabinet Size | 500mm x 1000mm |
| Cabinet Resolution | 104x 208 dots |
| Cabinet Material | Die Casting Aluminum |
| Cabinet Weight | 13kg/panel |
| Brightness | ＞1200 nits |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-140°/ V-140° |
| Refresh Rate | 960-2880Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 4096-16384 |
| Number of Color | 1 billion |
| Input Maximum Power | 250 W/panel |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
| IP Rating | IP43 |
Applications:

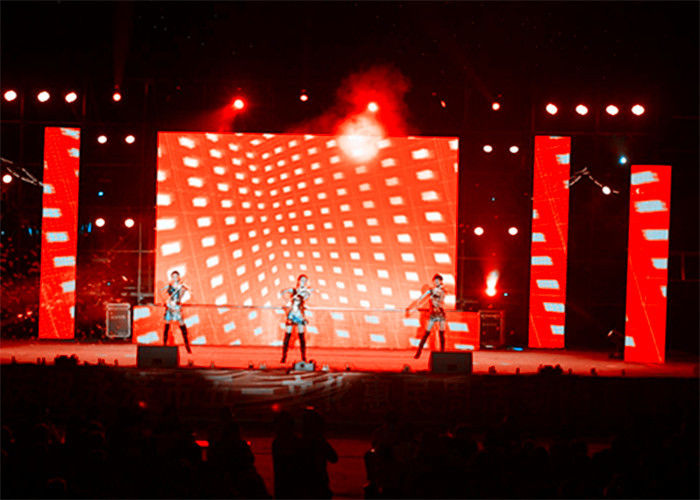

Stage Rental, mobile media, night club, entertainment events, business establishments, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, etc;
Our Services:
1. Could provide LED display project support and do investigation in local places since our customers start the LED display project budget.
2. Customized LED screen software and hardware products will be provided base on customers’ requirements.
3. Provide LED screen technical training (factory or on-site) for different customers.
4. Drawings like steel structure drawing, connection drawing, etc. can be provided after the order.
5. Timely online services are provided whenever there is software operational problems and we’ll solve problems as soon as possible in working with our customers.
