8mm 1R1G1B LED Screen 32*16 Epistar Advertising Led Display Panel

8mm 1R1G1B LED Screen 32*16 Epistar Advertising Led Display Panel

8mm 1R1G1B LED Screen 32*16 Epistar Advertising Led Display Panel

Product Details:

Place of Origin: China
Certification: CE, CCC, FCC, ROSH, ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD 400-1999 per sqm
Packaging Details: Flight case or wooden case
Delivery Time: within 15 to 20 working days after receiving deposit
Payment Terms: T/T, Western Union
Supply Ability: 1300 square meters per month
Contact Now
Detailed Product Description
Production Name: SMD LED Screen Size: 256*128mm
Pixels: P8 Usage: Outdoor
Function: Advertisement|picture Feature: Full Color
Highlight:

led video screen

,

advertising led display screen

8mm 1R1G1B LED Screen 32*16 Epistar Advertising Led Display Panel​

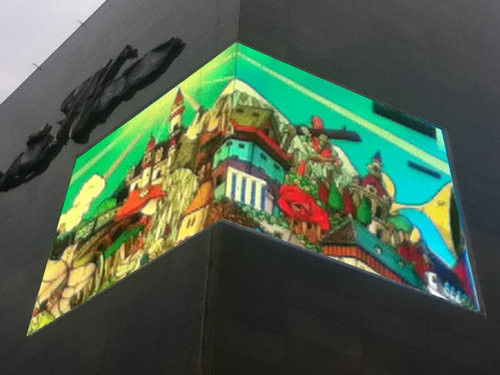

1, Curve LED display with angle;

2, Large viewing angle;

3, LED Chips: Epistar

4. LED Source: DIP 346;

5. Module: 320mm x 160mm;

6. IP65, waterproof



Features:

(1) Brightness adjustable

(2) High Refresh Rate reach to 3000Hz or more

(3) Long lifespan and stable quality

(4) Working under the temperature -30C to +75C

(5) Save 35% power than normal screens





Application:

advertising LED display, shopping mall LED display for logo showing , bank & stock exchange LED display for rates showing , train & bus station , airport , telecommunication LED screen system for information showing and instruction , Stage performances and so on.





Function:

  1. Excellent visual effect, clear and exquisite
  2. Good flatness.
  3. Easy to clean, welding spots inoxidizable.
  4. Closer look available, better effects without glare and mosaic.
  5. Good viewing angle.
  6. Easy to assembly, install and transport with simple packing and convenient use.
  7. Vivid mixed colors.
  8. No color cast when look from different angles.
  9. Excellent heat-sinking, high stability, no scrapped lamp.







Specifications:

Product type

P8

Pixel pitch

8mm

Pixel constitution

1R1G1B

LED package mode

SMD3528/SMD3535

Pixel density

15625dots/㎡

Scan mode

4

Brightness

5000 cd/㎡ / 5500cd/㎡

Module resolution

32*16

Module size

256*128mm

Max. consumption

1000W/㎡

Ave. consumption

400W/㎡

Viewing angle

Horizontal 120°/Vertical 100°

Cabinet

Customized (size, color, design etc.)

Control Method

Synchronous

Frame frequency

≧ 60Hz

Refresh Rate

≧ 400Hz,Max. 2000Hz

Grey level

≧ 4K grade

Brightness adjustment

Manual or Auto 100 grade

Working temperature

-10 OC — +45 OC

Working voltage

AC220V±10%;50Hz(AC110V optional)

Video interface

VGA,DVI,CVBS,Y/C,YPbPr,SDI/HDSDI,HDMI etc

Communication distance

Network cable≦100m; Multimode Fiber≦500m; Single mode Fiber≦10km

Average fault-free

5000hours

Life span

100000hours

Defect ratio

≦0.1‰

control system

DVI display card + full color controller card

8mm 1R1G1B LED Screen 32*16 Epistar Advertising Led Display Panel8mm 1R1G1B LED Screen 32*16 Epistar Advertising Led Display Panel



Competitive Advantage:



1) Price Advantage: Best competitive price of the market.
2) Performance Advantage: Best brightness, High refresh rate, high consistency, Big viewing angle...

3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: with professional service team for 24 hours service!
