Name: 2880Hz LED Display / Modular Outdoor Led Screen Grey Level 4096-16384
Brand: Beijing Silk Road Enterprise Management Services Co.,LTD
Price: Negotiable USD
Availability: InStock

Home Products Modular Hire LED Screen

2880Hz LED Display / Modular Outdoor Led Screen Grey Level 4096-16384

Product Details:

Place of Origin:	China
Certification:	CE, CCC, FCC, ROSH, ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD 400-1999 per sqm
Packaging Details:	Flight case or wooden case
Delivery Time:	within 15 to 20 working days after receiving deposit
Payment Terms:	T/T, Western Union
Supply Ability:	1300 square meters per month

Contact Now

Detailed Product Description

Power Supply:	Mean Well	Pixel Pitch:	3.91mm
Warranty:	2 Years	Certificates:	CE,Rohs,ETL,ISO9001
Resolution:	104x104	Pixel Package:	SMD3528
Brightness:	1500nits	Panel Weight:	6.6KG
Highlight:	modular led display , led video screen hire

2880Hz LED Display / Modular Outdoor Led Screen Grey Level 4096-16384

Modular and easy to maintain

the one module size is 500mmx125mm, very easy to maintainence !

There is almost no more ribbon cables for the cabinet and module. Everything connected straight on the PCB hub. Less cables means less possible problems. And no need to disassemble the whole screen for maintenance. Each component can be detached individually for that purpose

Specifications:

Product Series	R3.91
Pixel Pitch	3.91mm
Pixel Package	SMD2121
LED Configuration	1R1G1B
Pixel Density	65,536 Pixels/㎡
Module Size	250mm x 250mm
Module Resolution	64 x 64 dots
Suggested Cabinet Size	500mm x 500mm x 80mm
Cabinet Resolution	128 x 128 dots
Cabinet Material	Aluminum
Cabinet Weight	＜9kg/panel
Brightness	2000 nits
Color Temperature	3000-12000K
Viewing Angle	H-140°/ V-140°
Driving Mode	1/10
Refresh Rate	960-2880Hz
Frame Frenquency	60Hz
Grey Level	4096-16384
Number of Color	1 billion
Input Voltage	AC220±10%, AC110 ±10%
Input Frequency	50-60Hz
External Interface	S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc
IP Rating	IP43

Applications:

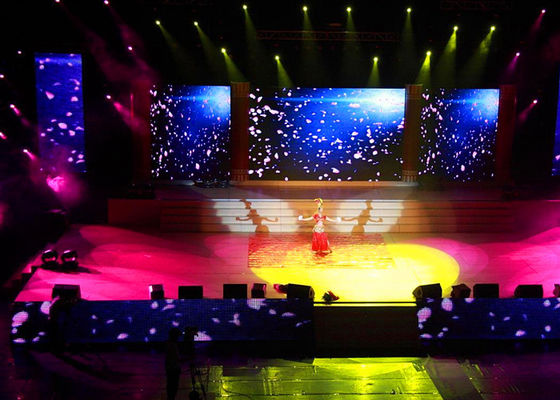

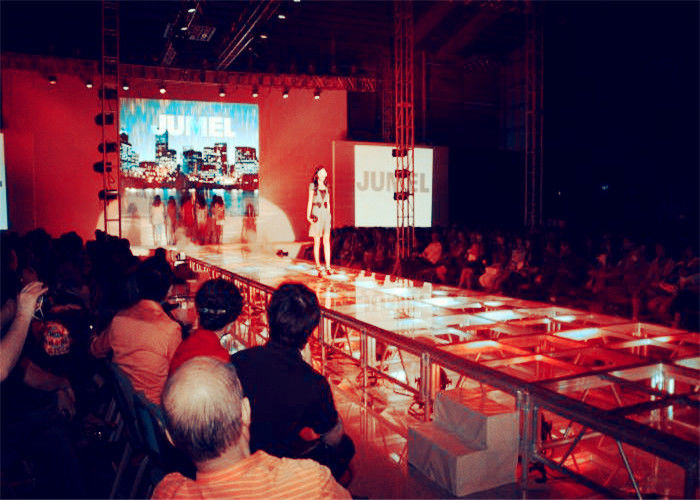

Traffic sign industry,Stage events,Shopping mall,Concerts,Electricity, water conservation industry Security industry,Military industry,Conference system Broadcasting industry,Rental.

Our Services:

1. 2years guarantee with life-time maintenance.

2. 7×24h after-sales service.

3. Free training for buyers.

4. Monthly phone call feedback.

5. Life-time system maintenance.

6. Provide local installation guidance.

Cost Saving for Installation and Maintenance

Fast locks design, cabinets can be easily assemblied in 7 seconds.

Dual-maintenance, no need fan, noiseless, low power comsumption.

Vertical / Horizontal viewing angle 160 degree.

Calibration for high quality picture.
