| Place of Origin: | China |
| Certification: | CE, CCC, FCC, ROSH, ISO9001 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 400-1999 per sqm |
| Packaging Details: | Flight case or wooden case |
| Delivery Time: | within 15 to 20 working days after receiving deposit |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1300 square meters per month |
| Features: | Dust-proof | Product Name: | Rgb P10 Led Display |
|---|---|---|---|
| Application: | Railway Stations | Best Viewing Distance: | 10m |
| Brightness: | ≥7500cd/㎡ | Module Size: | 160*160mm |
| Pixel Density: | 10000/㎡ | Pixel Pitch: | 10mm |
| High Light: | p10 led display,led display screens |
||

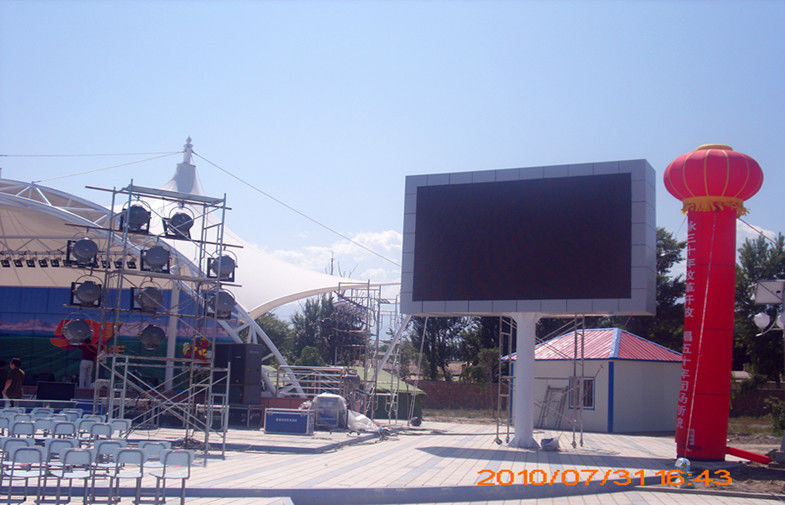

1R 1G 1B Rgb P10 Led Display Module 7500cd/㎡ For Railway Station
Stable performance,wide applicability,high refresh rate,high protection grade.
1. The cabinets, featuring great moisture and corrosion proofing, enable themselves to work in all weather
conditions.
2. Superb refresh rate provides you coherent video effects to meet your needs for high display quality.
3. high temperature resistant and aging resistant PC materials are applied in the modules to get rid of the
mosaic problem even after long time use.
LED Screen Advantages
High resolution of outdoor full color LED display;
Integrated encapsulation is blessed with higher reliability;
Good color mixture from far or near distance;
Good color consistency transparent picture;
Good picture uniformity;
Wide viewing angle;
Higher contrast ratio;
|
P10 Full Color Display |
|
|
Physical Pixel Pitch |
10mm |
|
Module Size |
160*160mm |
|
Pixel Density |
10000/㎡ |
|
Pixel Configuration |
1R1G1B DIP346 |
|
Best Viewing Distance |
10m |
|
View Angle(Horizontal) |
110° |
|
Brightness |
≥7500cd/㎡ |
|
Driving Method |
1/4 Constant Driving |
|
Control Mode |
Real Pixel |
|
Cabinet Size |
640*480mm |
|
Cabinet Resolution |
64*48 |
|
Cabinet Weight |
32kg |
|
Maximum Power Consumption |
920W/㎡ |
|
Operating Voltage |
220±10% or 110±10% |
Note:
Our company products are constantly upgrading, the above parameters is for reference only, please refer
to the actual parameters prevail
