Name: 160mm×160mm Football Stadium Perimeter Led Screen 1R1G1B 6500K
Brand: Beijing Silk Road Enterprise Management Services Co.,LTD
Price: Negotiable USD
Availability: InStock

Home Products Football Stadium Perimeter LED Screen

160mm×160mm Football Stadium Perimeter Led Screen 1R1G1B 6500K

Product Details:

Place of Origin:	China
Certification:	CE, CCC, FCC, ROSH, ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD 400-1999 per sqm
Packaging Details:	Flight case or wooden case
Delivery Time:	within 15 to 20 working days after receiving deposit
Payment Terms:	T/T, Western Union
Supply Ability:	1300 square meters per month

Contact Now

Detailed Product Description

Production Name:	LED Display Module	Brightness:	6000 Cd/㎡
Size:	160mm×160mm	Tech:	DIP
Feature:	Full Color / Waterproof	Pixels:	P10
Usage:	Outdoor
Highlight:	sports led display , led stadium display

160mm×160mm Football Stadium Perimeter Led Screen 1R1G1B 6500K

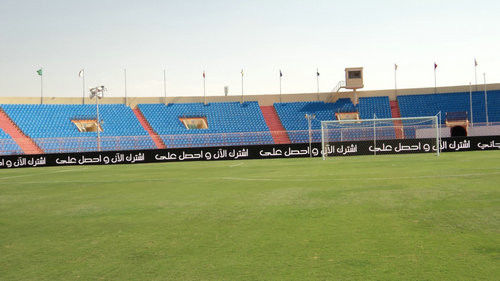

The Outdoor P10 Sports Parameters LED Displays are widely used on indoor and outdoor sports field for advertising. For example, basketball, baseball, football..

Specifications:

Pixel Pitch	10mm
Brightness	≥6000 cd/㎡
Color Temperature	6500K
Pixel configuration	1R1G1B
Viewing angle	Horizontal 120°/Vertical50°
Refresh frequency	≥3000Hz
Power(Max/Average)/M²	1000W/400W
Module size	160mm×160mm
Cabinet size	960 mm×960 mm× 150 mm
Weight	65Kg/m²
Control method	Synchronous
Frame frequency	≧ 60Hz
Refresh frequency	≧ 400Hz,Max 2000Hz
Gray level	≧ 4K
Working temperature	-10 ^OC — +45 ^OC
Work voltage	AC220V±10%；50Hz(AC110V)
Service lige	100,000 Hours
Malfunction dot rate	<0.1‰
Control system	LED special video card+professional LED Control system

High Brightness and Saving Engergy

Outdoor HD led display leader,very mature product,each type is at least 2 years ahead of the industry. Using the high brightness led light with the lowest consumption, saving engergy ≥30%, with 28 core technologypatent, whole saving engergy≥50%, energy saving and environment protection.
Adopt general led module series with core technology, make it possible for customer to upgrade the screen to smaller pixel pitch,Increase the secondary marketing opportunity and maintain good relationship.
