1200nits Mobile Led Screen Hire Pixel Pitch 3MM Smd Led Display Module

1200nits Mobile Led Screen Hire Pixel Pitch 3MM Smd Led Display Module

    • 1200nits Mobile Led Screen Hire Pixel Pitch 3MM Smd Led Display Module
    • 1200nits Mobile Led Screen Hire Pixel Pitch 3MM Smd Led Display Module
  • 1200nits Mobile Led Screen Hire Pixel Pitch 3MM Smd Led Display Module

    Product Details:

    Place of Origin: China
    Certification: CE, CCC, FCC, ROSH, ISO9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD 400-1999 per sqm
    Packaging Details: Flight case or wooden case
    Delivery Time: within 15 to 20 working days after receiving deposit
    Payment Terms: T/T, Western Union
    Supply Ability: 1300 square meters per month
    Contact Now
    Detailed Product Description
    Brightness: 1200nits Mobile Led Screen Hire Weight: ≤35KG/M²
    Size: 576x576x80mm Pixel Density: 111111pixels/m²
    Pixel Package: SMD2121 Resolution: 192x192
    Highlight:

    led video screen hire

    ,

    led screen rental

    1200nits Mobile Led Screen Hire Pixel Pitch 3MM Smd Led Display Module​





    Description:

    Support All Media Format and Display Mode

    Support all media format, also support DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program, VCD/DVD and live show. Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet. Hotplug in power supply.



    1. Frame supports different model(pixel pitch)of modules, increasing the investment return by 30%.



    2. fast locks with adjustment function for the seamless between panels.



    3. The outer lines can be through the side of the panels, tidier.



    4. LED module connects to frame through magnet adsorption.



    5. Large viewing angle: 140°/140°(horizontal/vertical).



    6. Modules can be added to frame in any order.



    7. Die-casting aluminum.









    Specifications:





    Product Series R3
    Pixel Pitch 3mm
    Pixel Package SMD2121
    LED Configuration 1R1G1B
    Pixel Density 111111 Pixels/㎡
    Module Size 192mm x 192mm
    Module Resolution 64 x 64 dots
    Suggested Cabinet Size 576mm x 576mm x 80mm
    Cabinet Resolution 192 x 192 dots
    Cabinet Material Aluminum
    Cabinet Weight <35kg/㎡
    Brightness 1200 nits
    Color Temperature 3000-12000K
    Viewing Angle H-140°/ V-140°
    Driving Mode 1/16
    Refresh Rate 960-2880Hz
    Frame Frenquency 60Hz
    Grey Level 4096-16384
    Number of Color 1 billion
    Input Maximum Power 700 W/㎡
    Input Voltage AC220±10%, AC110 ±10%
    Input Frequency 50-60Hz
    External Interface S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc
    IP Rating IP43






    Applications:

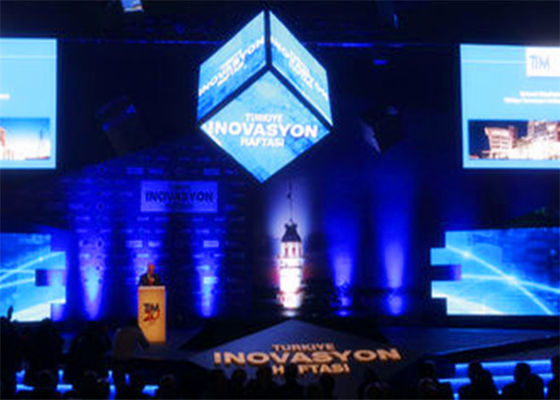

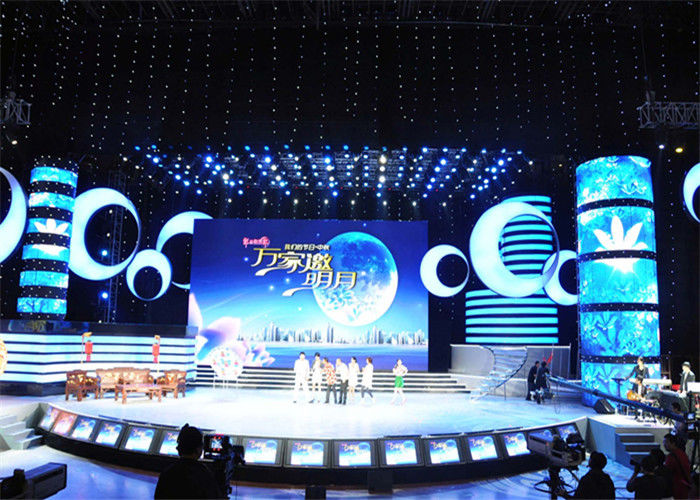

    Live shows, rental events, TV studios, exhibitions.





    1200nits Mobile Led Screen Hire Pixel Pitch 3MM Smd Led Display Module1200nits Mobile Led Screen Hire Pixel Pitch 3MM Smd Led Display Module
